Quick Details

  • Material: PE
  • Use: Masking
  • Adhesive Side: Single Sided
  • Adhesive: Rubber, Butyl bituminous and Adhesion Promoting Resins
  • Adhesive Type: Hot Melt
  • Feature: Waterproof, Anticorrosion and Waterproof
  • Design Printing: No Printing
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Polyken
  • Model Number: Polyken934
  • Interleaf: Anti-adhesive Film Treated with Silicone
  • Backing: Special blend of stabilized polyethylene
  • OEM: acceptable
  • length: 100ft to 800ft
  • standard or no-standard: standard
  • Brand: POLYKEN
  • Certification: SGS, DVGW, ISO, CNPC
  • Performance: AWW C-214,ASTM D 1000,EN 12068

Packaging & Delivery

Packaging Details export standard carton packing with membrane protect &crossed
Delivery Time Shipped in 3 days after payment

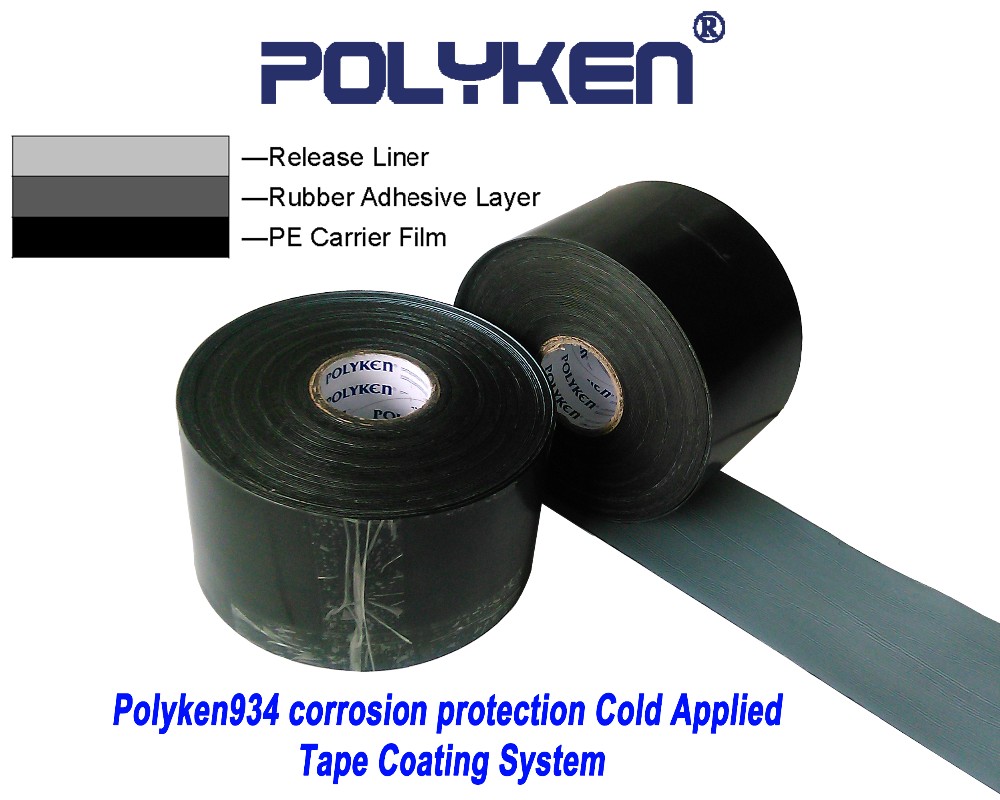

Polyken 934 polyethylene anti corrosion pipe wrap tape

Product Description

System Description



POLYKEN 934  is a cold applied tape coating system designed for the corrosion protection of field joints, fittings, and specialty piping.



The highly conformable backing and thick, aggressive adhesive also make it the ideal repair system for all types of main line coatings.



The POLYKEN 934 tape with very tacky adhesive has a release plastic liner to enable proper unwinding of the roll.



Whether used as a double wrap system or as a single wrap with a mechanical layer, the POLYKEN 934 tape coating system is universally specified in the oil, gas and water industries.



Backing:  Special blend of stabilized polyethylene



Adhesive: Butyl bituminous and Adhesion Promoting Resins



Interleaf: Anti-adhesive Film Treated with Silicone.



Backing color:  Black (BLK) ,White(WHI)



Length:30ft(10M),50ft(15M),100ft(30M)



Width: 2"(50mm),,4"(100mm),6"(150mm)



Thickness: 40mils(1.016mm),50mils(1.27mm),60mils(1.524mm),65mils(1.651mm)





Features

- Conformable to irregular shapes.

- Excellent adhesion to pipe and self

- Thick, aggressive adhesive.

- Conformable to irregular shapes.

- Cold applied

-Compatible with all pipe diameters and generic plant coatings

-Complies with ASTM D1000,AWWA C 209,EN 12068 standards

- As repair system for line coatings



Properties

PROPERPTIES

UNIT

TEST METHOD

TYPICAL VALUES

POLYKEN934-40

POLYKEN934-50

POLYKEN934-60

POLYKEN934-65

Total thickness

mil

ASTM D 1000

40mils

50mils

60mils

65mils

Tensile Strength

N/cm

ASTM D 1000

60

70

80

100

Elongation

%

ASTM D 1000

300

300

350

350

Peel adhesion

  To primed pipe

N/cm

ASTM D 1000

30

33

35

35

Dielectric Strength

KV/mm

ASTM D 1000

42

42.6

43

43.8

Volume Resistivity

ohm·cm

ASTM D 257

2.5 X 1012

2.5 X 1012

2.5 X 1012

2.5 X 1012

Water Vapor Transmission Rate

g/ m2 /24h

ASTM E 96

0.06

0.05

0.03

0.02

Water Absorptivity

%

ASTM D 570

0.1

0.1

0.1

0.1

Application Temperature



-20-+70℃

Max service temperature



-40-+80℃

Performance

AWWA C-209,ASTM D 1000,EN 12068

Recommended primer     :      P1027

Additional mechanical layer :      POLYKEN 955



How to select coating materials

Example:Total coating required thickness 3 mm with a minimum overlap of 50%.

You Can Choose followed two methods :

-1st :PRIMER 1027+ 934-60(60mil=1.524mm) as single double wrap, total 3mm .You Can Choose followed two methods :

Or

-2nd :PRIMER 1027 + 934-40(inner tape-40mil=1.016mm)+955-20(outer wrap-20mil=0.508mm),total 3mm.





Application&Using
