Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: POLYKEN
  • Model Number: Polyken980-30
  • Backing: Special blend of stabilized polyethylene
  • Adhesive: Butyl rubber and Adhesion Promoting Resins
  • qualification: ASTM D1000,AWWA C 214,EN 12068 standards
  • Color: Black
  • Thickness: 15mils(0.381mm),20mils(0.508mm),25mils(0.635mm),30mils(0.762mm)
  • Width: 2"(50mm),,4"(100mm),6"(150mm),9"(228mm),12"(305mm)18" (457mm)
  • OEM: Available
  • Brand: POLYKEN
  • Certification: DVGW,SGS
  • Performance: AWWA C-214,ASTM D 1000,EN 12068

Packaging & Delivery

Packaging Details Export Carton
Delivery Time Shipped in 3 days after payment

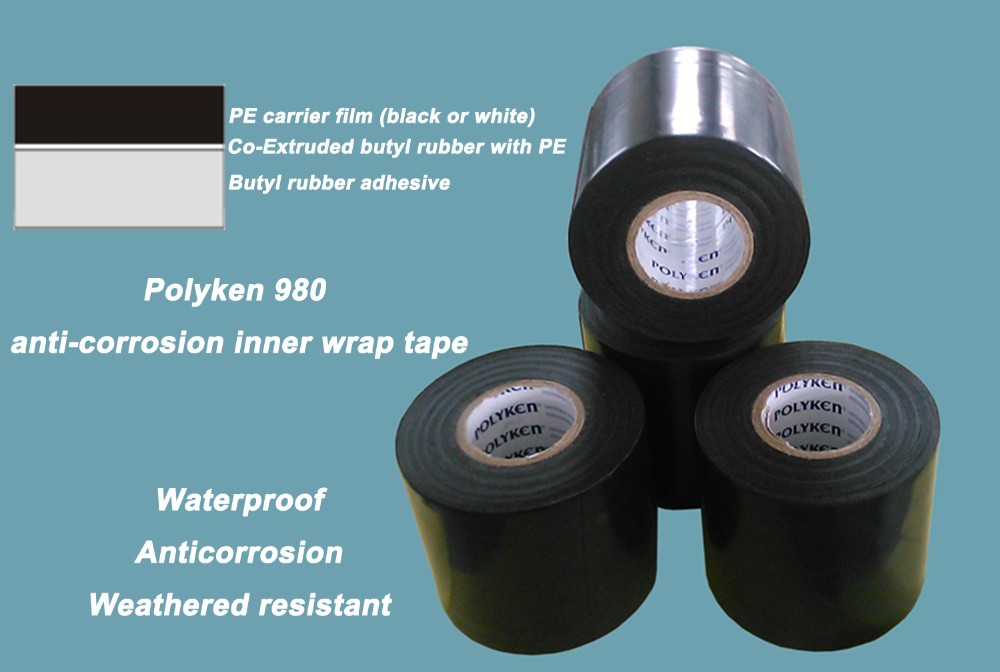

 Polyken 980 anticorrosion tape

Product Description

System Description



The POLYKEN 980,955 is a multilayer system used for the protection of steel pipelines.



POLYKEN 1019,1027, Liquid Adhesives can be used as primers for this system.



In addition to serving as primers, these liquidadhesives themselves represent an anticorrosion layer and provide a uniformly smooth contact surface to promote high adhesion of the coating system to the pipe.



They are designed for machine or brush application and formulated with stress-corrosion cracking inhibitors.



The AntiCorrosion layer POLYKEN 980 is engineered to assure a high bond to the primed surface with excellent conformability characteristics.



The mechanical protection layer POLYKEN 955,achieves a complete bond to the POLYKEN 980 inner layer, providing maximum handling and in-service protection for the coating system.



The adhesives in these and all POLYKEN tape systems contain proven anti-microbial additives.



The POLYKEN 980/955 can also be used for ductile iron pipes, in this case the use of 1027 primer is recommended.



Backing:           Special blend of stabilized polyethylene



Adhesive:         Butyl rubber and Adhesion Promoting Resins



Backing color:   Black (BLK)



Length:            From 100ft(30M) to 800ft(244M)



Width:              From 2"(50mm) to 18" (457mm)



Thickness:       15mils(0.381mm),20mils(0.508mm),25mils(0.635mm),30mils(0.762mm)



Features



- Cold applied                                     -Uniform coating thickness



-Resistant to soil stress                   -Excellent adhesion to pipe and self



-Low cathodic protection                 -Long-term in-ground performance



- Serve for low-high temperatures



-Compatible with all pipe diameters and generic plant coating systems



-Qualified ASTM D1000,AWWA C 214,EN 12068 standards



Properties



Product Properties

Test method

Typical Value

980-15

980-20

980-25

980-30

Total Thickness



15mil(0.381mm)

20mil(0.508mm)

25mil(0.635mm)

30mil(0.762mm)

Backing of PE film



9 mils(0.229 mm)

12mil(0.305mm)

13mil(0.330mm)

10mil(0.254mm)

Butyl Rubber Adhesive



6 mils(0.152 mm)

8mil(0.203mm)

12mil(0.305mm)

20mil(0.508mm)

Tensile Strength

ASTM D1000

40 N/cm

55 N/cm

62 N/cm

70 N/cm

Elongation

ASTM D1000

300%

330%

350%

400%

Peel Adhesion to Primed Steel

ASTM D1000

24.5 N/cm

25 N/cm

26.5 N/cm

30 N/cm

Water Vapor Transmission Rate

ASTM E 96

0.10g/m2

0.10g/m2

0.09g/m2

0.08g/m2

Water absorption after 1 day,

At+23

ASTM D570

0.10%

0.10%

0. 08%

0. 06%

Volume Resistivity

ASTM 257

2.0 x 1015

ohm.cm

2.5 x 1015

 ohm.cm

2.5 x 1015

 ohm.cm

2.5 x 1015

ohm.cm

Dielectric Strength

ASTM D149

30 kV

35 kV

42kv

43kv



Packaging & Shipping

Application&Using

Certifications



FAQ

1.Whats the production leading time?

Usually 20days/40HQ after deposit payment

Usually 10-15days/20'FCL after deposit payment

2.What's the MOQ?

It is depends items, usually 300 rolls to 500 rolls

3.How about sample and charge?

    Usually sample is free,customer take care of express charge.

    But it should paid if asking for large quantity samples.

4. How can I visit your factory?

    You are warmly welcome to our factory, just contact us in advance.

    Our factory detail address is No 3 Jiamei Road , Jia'xiang Industry Park, Jining City ,Shandong Province ,China

    Located in Jining City, half an hour away from Jining Qufu Airport.

    Two hours away from the Qufu East Railway Station.



Company Information

  • Jining Qiangke have more than 5 years experience in supplying anticorrosion materials.
  • Our company employs more than 40workers, plant area 27000 m2 with two production lines.
  • Our annual production capability is more than 3300tons anticorrosion tapes
  • Currently, Qiangke Guanfang tape is already exported to America, Germany,Italy,Russia,Egypt,Korea,Philippines, Malaysia,Turkey,Saudi Arabia and 10 other countries and regions.
  • Annual export volume reaches 1.8 million dollars.
  • We have attained ISO9001 and ISO14001 certification, also we get long-term cooperation with CNPC.
  • Our own brand Guanfang tape have passed the SGS, DVGW and CNPC test.
