Polyken 955 mechanic protection pipe outer wrap tape

FOB Reference Price:Get Latest Price
US $1.48-2.5 / Roll | 300 Roll/Rolls wrap (Min. Order)
Supply Ability:
300 Ton/Tons per Month polyken pipe outer wrap tape
Port:
Qingdao,China
Report Suspicious Activity
Overview
Quick Details
Material:
PE
Use:
Masking
Adhesive Side:
Single Sided
Adhesive:
Rubber, Butyl rubber and Adhesion Promoting Resins
Adhesive Type:
Hot Melt
Feature:
Waterproof
Design Printing:
No Printing
Place of Origin:
Shandong, China (Mainland)
Brand Name:
polyken
Model Number:
polyken955
Backing:
Special blend of stabilized polyethylene
Color:
Black or White
Performance:
Meets ASTM D 1000 Standard
Stock:
available
width:
2'' to 8''
length:
100ft to 800ft
thickness:
15mil,20mil,25mil,30mil
Brand:
POLYKEN
standard or no-standard:
standard
Packaging & Delivery
Packaging Details
export standard carton packing with membrane protect &crossed
Delivery Time
Shipped in 3 days after payment

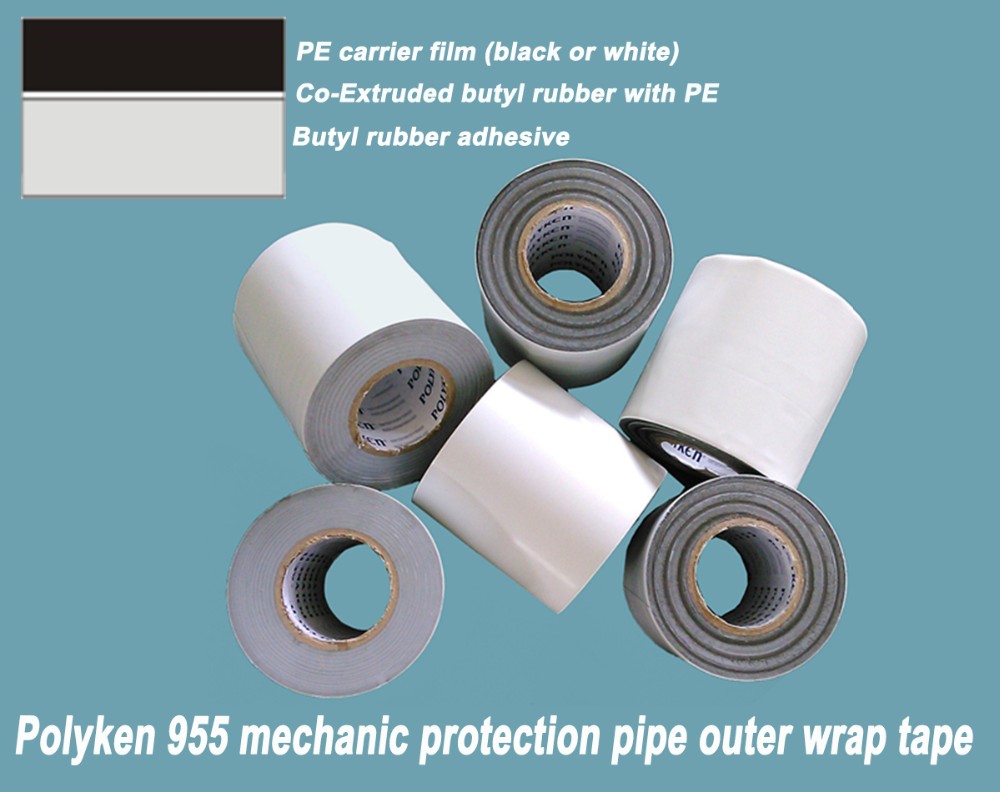

Polyken 955 mechanic protection pipe outer wrap tape

Product Description

System Description



The POLYKEN 980,955 is a multilayer system used for the protection of steel pipelines.



POLYKEN 1019,1027, Liquid Adhesives can be used as primers for this system.



In addition to serving as primers, these liquidadhesives themselves represent an anticorrosion layer and provide a uniformly smooth contact surface to promote high adhesion of the coating system to the pipe.



They are designed for machine or brush application and formulated with stress-corrosion cracking inhibitors.



The adhesives in these and all POLYKEN tape systems contain proven anti-microbial additives.



The POLYKEN 980/955 can also be used for ductile iron pipes, in this case the use of 1027 primer is recommended.



Features



-Resistant to soil stress

- Excellent adhesion to pipe and self

-Low cathodic protection

-Long-term in-ground performance

- Serve for low-high temperatures

- Cold applied

-Uniform coating thickness

-Compatible with all pipe diameters and generic plant

 coating systems

-Qualified ASTM D1000,AWWA C 214,EN 12068 standards



Backing:  Special blend of stabilized polyethylene



Adhesive: Butyl rubber and Adhesion Promoting Resins



Backing color: WHITE OR Black



Length:From 100ft(30M) to 800ft(244M)



Width:From 2"(50mm) to 18" (457mm)



Thickness:15mils(0.381mm),20mils(0.508mm),25mils(0.635mm),30mils(0.762mm)



Properties



Product Properties

Test method

Typical Value

POLYKEN 955-15

POLYKEN 955-20

POLYKEN 955-25

POLYKEN 955-30

Total Thickness



15mil(0.381mm)

20mil(0.508mm)

25mil(0.635mm)

30mil(0.762mm)

Backing of PE film



10mils(0.254 mm)

15mil(0.381mm)

20mil(0.508mm)

25mil(0.635mm)

Butyl Rubber Adhesive



5 mils(0.127 mm)

5mil(0.127mm)

5mil(0.127mm)

5mil(0.127mm)

Tensile Strength

ASTM D1000

50N/cm

60N/cm

70 N/cm

80 N/cm

Elongation

ASTM D1000

300%

350%

350%

450%

Peel Adhesion to Primed Steel

ASTM D1000

24 N/cm

25 N/cm

26.5 N/cm

33 N/cm

Water Vapor Transmission Rate

ASTM E 96

0.10g/m2

0.10g/m2

0.08g/m2

0.06g/m2

Water absorption after 1 day,At+23℃

ASTM D570

0.10%

0.10%

0. 08%

0. 06%

Volume Resistivity

ASTM 257

2.0 x 1015 ohm.cm

2.5 x 1015 ohm.cm

2.6 x 1015 ohm.cm

2.6 x 1015 ohm.cm

Dielectric Strength

ASTM D149

30 kv

36 kv

43 kV

45 kV

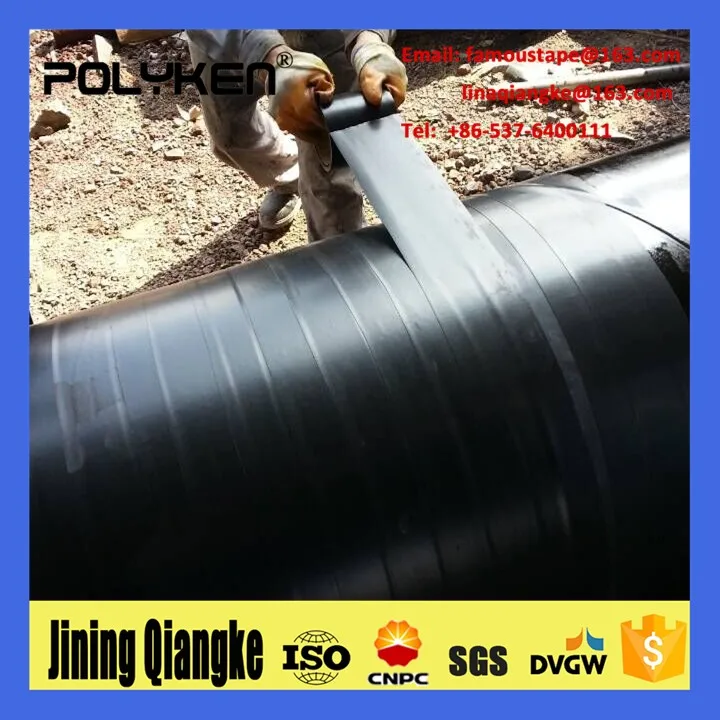

Application&Using



Packaging & Shipping



Certifications



Maybe you are interested in the below items:



Waterproof PP Woven Butyl Rubber Tape        PIPE INNER WRAPPING TAPE



Waterproof Aluminum Foil Butyl Tape                 Cold Applied Pipeline Joint Tape

Company Information

  • Jining Qiangke have more than 5 years experience in supplying anticorrosion materials.
  • Our company employs more than 40workers, plant area 27000 m2 with two production lines.
  • Our annual production capability is more than 3300tons anticorrosion tapes
  • Currently, Qiangke Guanfang tape is already exported to America, Germany,Italy,Russia,Egypt,Korea,Philippines, Malaysia,Turkey,Saudi Arabia and 10 other countries and regions.
  • Annual export volume reaches 1.8 million dollars.
  • We have attained ISO9001 and ISO14001 certification, also we get long-term cooperation with CNPC.
  • Our own brand Guanfang tape have passed the SGS, DVGW and CNPC test.
