Quick Details

  • Material: visco elastic
  • Use: Masking
  • Adhesive Side: Single Sided
  • Adhesive: Rubber
  • Adhesive Type: Hot Melt
  • Feature: Waterproof
  • Design Printing: No Printing
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Polyken
  • Model Number: Polyken visco elastic
  • Tensile strength: 45N/cm
  • Application temperature: -40 to +70℃
  • Density: 1.6-1.7g/cm3
  • Validity: Over 30 years
  • Using for: Steel pipeline
  • Features: Corrosion protective and Waterproof
  • Color: Green or Blue
  • Coating: 2-layer system
  • Wide:: 50mm,75mm,100mm,150mm
  • Length:: 5m,10m,20m

Packaging & Delivery

Packaging Details Export Carton OR as you require
Delivery Time Shipped in 3 days after payment

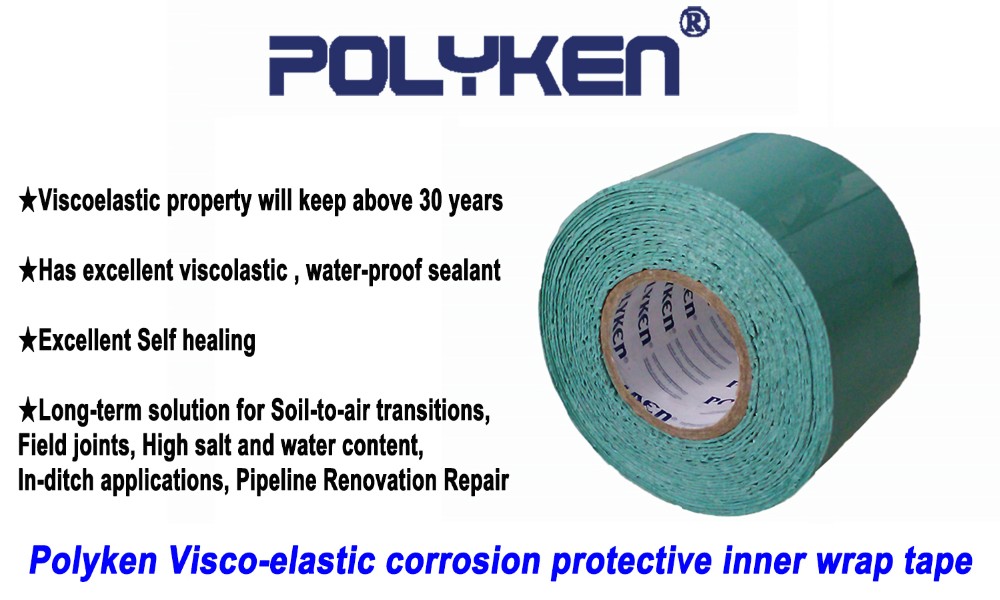

Polyken visco elastic corrosion protective inner wrap tape

Product Description

Description

Visco-elastic anticorrosive tape has excellent viscolastic , water-proof sealant and easy-used characters. In normal conditions, its viscoelastic property will keep above 30 years.



Visco elastic coating is a 2-layer system that consists of a corrosion protective inner wrap (VISCOWRP) and mechanical protective outer wrap that can be a PE, PVC or PU composite outer wrap.



Wide: 50mm,75mm,100mm,150mm



Length: 5m,10m,20m



Thickness: 1.8-2.0mm



Features

  • Is easy to use and can be applied in almost any situation, including below- and above grade structures and steel pipelines,elbow pipe, pipe bending, three joints and insulated flange.
  • Remains flexible even after decades
  • Adheres to any dry surface, such as concrete, steel, pvc, piping, ducts, etc.
  • Is easy and safe to use. No primers, solvents or heating are required.
  • Is the latest viscous elastic coating, with unique features.
  • 100% impervious to moisture and gases.Works as a corrosion / vapor barrier, water stop and encapsulation agent
  • Is a long-term solution for Soil-to-air transitions, Field joints, High salt and water content,In-ditch applications,Pipeline Renovation Repair
  • Excellent Self healing
  • No curing time,Permanent wetting characteristics.
  • 100% inert formulation : no reactive groups and no deterioration in the course of time.
  • 30 years product warranty.

Properties

Item

Test method

Performance

color

Visual estimation

Green or blue

thickness

ISO 9001

1.8-2.0mm

Density

DIN 53479

1.6-1.7g/cm3

Application temperature

--

-40 to +70

Water absorption

ASTM D 570

less-than 0.1%

Tensile strength

DIN 30672

 45N/cm

peel strength to steel (23)

 ISO 21809-3

Tested on steel (Sa2 1/2,St2 and St3)and plant coatings PP,PE,FBE .Results on all sustrates:

@-45℃

-PP,PE,FBE min 3N/mm.

-steel  min 20N/mm

@+23℃  min0.5N/mm

@+70℃  min 0.05N/mm

Cathodic disbondment resistance

 EN 12068

less-than 6mm

Dielectric strength

DIN53481

 12kv/mm

Drip resistance

ISO21809-3

Tested 72 h @130 ,No dripping of compound



Lap shear strength

ISO21809-3

Tested @+23°C and +50°C  on steel(Sa 2½, St 2 and St 3). Results on all substrates:

@-45℃ min 3 N/mm2

@23℃ min 0.3 N/mm2

@70℃ min 0.03 N/mm2

Cohesive failure

≥ 99% coverage of surface

≥ 0.6 mm residual thickness

Water Vapor Transmission Rate

ASTM E 96

0.025%
